 A60 Class Deck Covering

BILLYTEX A60-FU

- BILLTEX A60-FU is a deck composition product for A-60 class deck and the system is obtained from high density HTB (High Temperature calcium silicate Board), which is composed of silica sand, cement, natural latex, SBR latex, HTB etc.

- It can be applied for floor and deck in all ship types. It also satisfies IMO FTP code MSC.61(67) Annex 1, part 3 and Annex 2. (IMO Res. A754(18) / A799(19)).

- The final coating on the BILLYTEX A 60-FU can be vinyl sheet, tile, polyurethane or epoxy paint, etc.

Characteristics

- A60 class deck fire protection.
- Excellent thermal protection and soundproof.
- Long life material.
- Non-combustibility.
- Excellent adhesive component and waterproof without crack.
- Impact absorption in collision.
- Special surface preparation is not required before application.
- Flexibility against fatigue.

Application

- Area of A-60 class deck, engine room or oil tank area where is required anti-thermal and anti-vibration.

Technical Data
Basis
Cement and synthetic latex
Color

BX-PRIMER, BASE, TOP
BX-L103

Powder : Grey
Liquid : White

Density (g/㎤ )
HTB board
BILLYTEX BX-B
Approx. 0.22 (applied)
Approx. 1.8 (applied)
Heat Conductivity (W/m·k)
0.132
Fire resistance
Fire resistant
Thickness (mm)
Standard
Minimum
Maximum
37
37
62
Curing time (hours)
PRIMER
BASE
TOP
-
16-24
2-4

* According to ambient conditions and humidity, curing time would be changed.

* H.T.B board Heat Conductivity (W/m·k) : 0.058

Application Method
Process
Materials
Unit
Quantity (kg/㎡ )

Standard Thickness
(37mm)

Remark

37mm
38mm
39mm
40mm

Heat

Bond
kg
2.5
2.5
2.5
2.5
27mm
HTB Board
SH
5.5
5.5
5.5
5.5
Proof
Metal lath
1
1
1
1
Nail(staple)
EA
30
30
30
30
Primer
coat
BX-PRIMER
kg
1.8
1.8
1.8
1.8
1.5mm
BX-L103
kg
0.6
0.6
0.6
0.6
Base
coat
BX-BASE
kg
17.5
19.5
21.5
23.5
8mm
BX-L103
kg
1.59
1.77
1.95
2.13
Top
coat
BX-TOP
kg
0.9
0.9
0.9
0.9
0.5mm
BX-L103
kg
0.3
0.3
0.3
0.3

* Quantity may be changed depending on working condition.

* -HTB Board : 300 x 600 x 25mm, 50mm (Standard)

-Metal lath : 0.914 x 33 x 0.5mm (#1000)
-Nail(staple) : 20L
-DP-SEALER (Epoxy type paint) 0.3kg/ ㎡ (If final is applied)

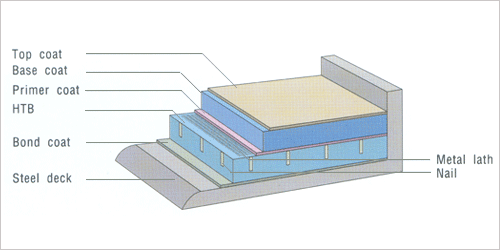

Sectional view
